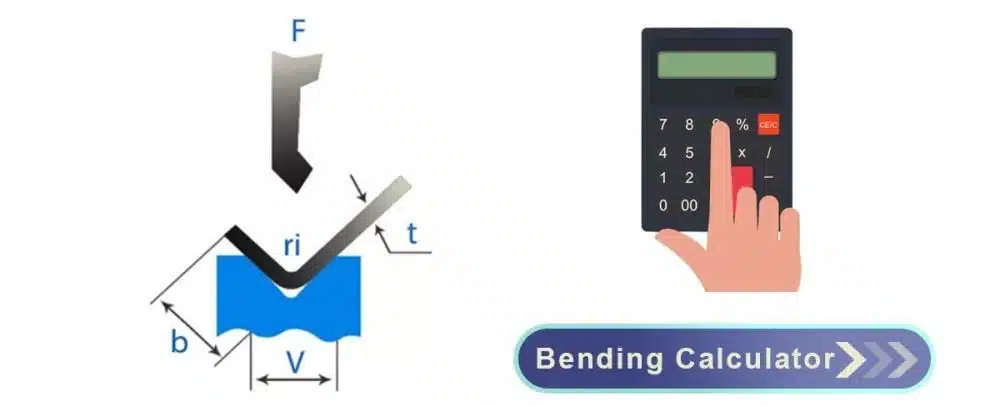

Press Brake Tonnage Calculator: Calculate Accurate Bending Force

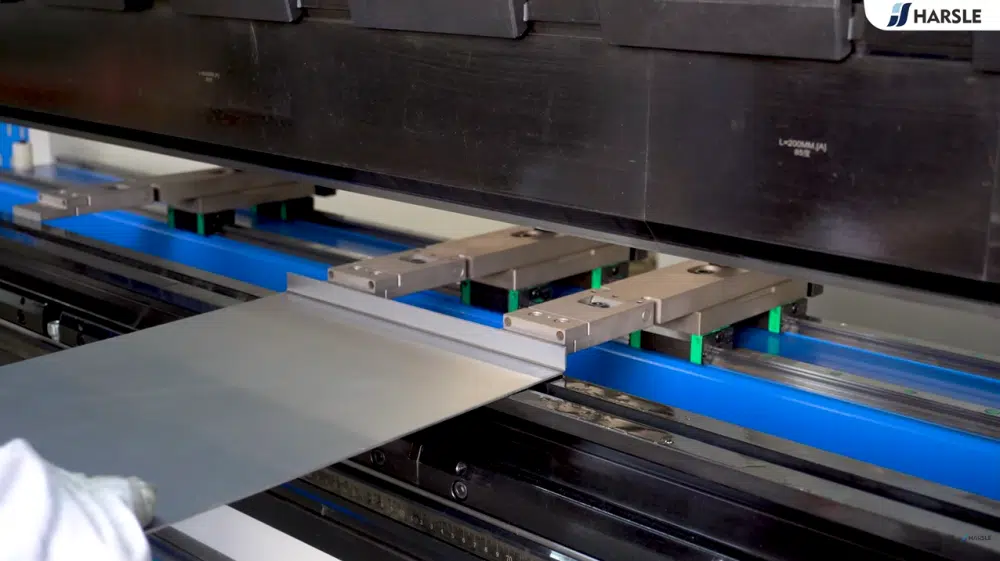

What is Press Brake Tonnage?
Press brake tonnage calculator is a measure of the amount of force a press brake can exert on a piece of metal during the bending process. It is expressed in tons and represents the maximum amount of pressure that the press brake’s ram can apply to the metal.
The tonnage required for a specific bending job depends on several factors, including the thickness and type of metal being bent, the length of the bend, and the angle of the bend. The press brake operator must calculate the required tonnage for each job to ensure that the press brake is capable of producing the desired bend without damaging the metal or the machine.
Press brakes are available in a range of tonnages, from small manual machines with a few tons of force to large automated machines capable of exerting hundreds of tons of force. Selecting the appropriate press brake tonnage for a given job is critical to achieving a successful bend and maintaining the longevity of the press brake.

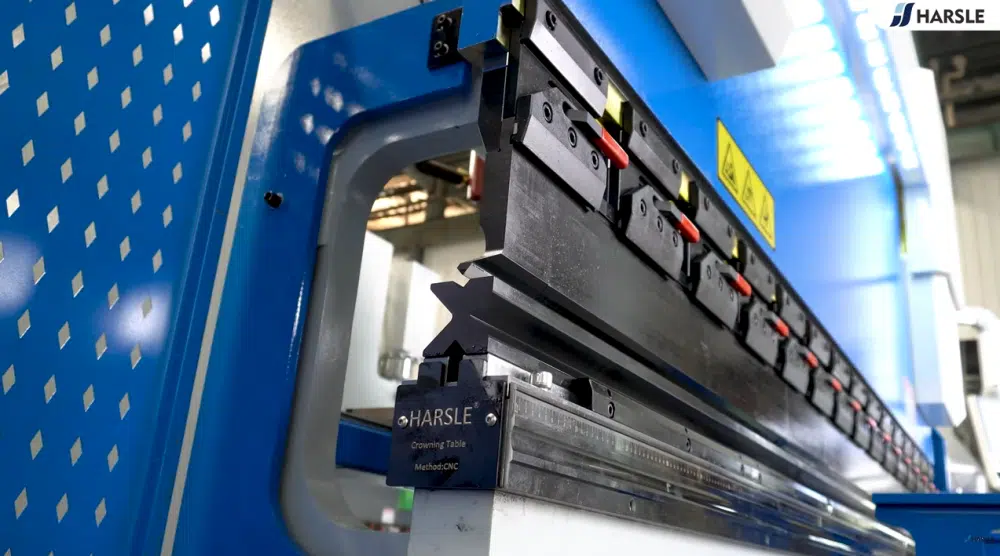

Why Use a Press Brake Tonnage Calculator?
A press brake tonnage calculator is a useful tool that helps determine the necessary force or tonnage required to bend and form sheet metal or other materials. Here are some reasons why using a press brake tonnage calculator can be beneficial:
Accuracy: Calculating the tonnage required for a particular bending job can be complex, and errors can be costly. Using a press brake tonnage calculator helps ensure that the calculations are accurate and the required tonnage is not underestimated, which can lead to failed bends or damaged equipment.
Safety: Press brakes operate under significant force and can be dangerous if not operated properly. Using a tonnage calculator ensures that the operator selects the right tooling and sets the machine to the correct tonnage, which can help prevent accidents.
Efficiency: A press brake tonnage calculator can help optimize the use of material and reduce waste, as well as help improve the overall production process by reducing setup time and ensuring that the machine is set up correctly for the job.
Cost savings: Calculating the required tonnage accurately can help prevent overloading the machine, which can lead to costly repairs or replacement. Using a press brake tonnage calculator can also help identify cost-saving opportunities by suggesting alternative tooling or materials that may require less tonnage to bend.

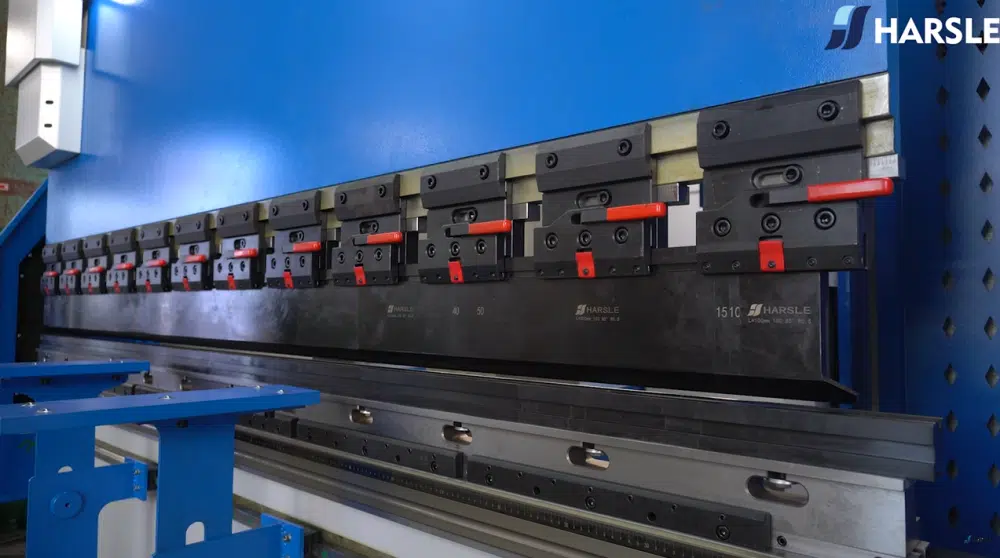

How to Use a Press Brake Tonnage Calculator
A press brake is a machine used for bending and shaping sheet metal. One important factor to consider when using a press brake is the tonnage required for a specific bend. Tonnage is a measurement of force that the press brake exerts on the metal to bend it to a desired angle. Using too much or too little tonnage can result in incorrect or defective bends. To determine the required tonnage for a bend, a press brake tonnage calculator can be used. In this article, we will discuss how to use a press brake tonnage calculator.
Step 1: Gather the necessary information
Before using the press brake tonnage calculator, you will need to gather some information about the material and the bend you want to make. You will need to know the thickness of the material, the width of the material, the desired bend angle, and the length of the bend. This information will be used to calculate the tonnage required for the bend.
Step 2: Open the press brake tonnage calculator
There are many press brake tonnage calculators available online, so choose one that is appropriate for your needs. Once you have found a suitable calculator, open it in your web browser.
Step 3: Enter the material thickness
The first thing you will need to do is enter the thickness of the material you will be bending. This is usually measured in inches or millimeters.
Step 4: Enter the material width
Next, enter the width of the material in inches or millimeters. This is the distance from one edge of the material to the other.
Step 5: Enter the bend angle
Enter the desired bend angle in degrees. The calculator will use this angle to determine the tonnage required to bend the material.
Step 6: Enter the bend length
Enter the length of the bend in inches or millimeters. This is the distance along the material that will be bent.
Step 7: Choose the tooling type
Choose the type of tooling you will be using to make the bend. The tooling type will affect the tonnage required for the bend.
Step 8: Calculate the tonnage
After entering all of the necessary information, click the calculate button to determine the tonnage required for the bend. The calculator will display the tonnage required for the bend based on the information you entered.
Step 9: Check the results
After the tonnage is calculated, it is important to double-check the results. Make sure that the tonnage required is within the capacity of your press brake. If the tonnage required is too high, you may need to use a different press brake or different tooling to make the bend.
Take An Example
To use a press brake tonnage calculator, follow these steps:
- Gather the necessary information: You need to know the length, thickness, and type of material you are bending, as well as the desired bend angle and the die opening.
- Find a press brake tonnage calculator: You can use an online calculator, an app, or consult your equipment manual.
- Input the values: In this example, you would enter the following values in the calculator:
- Length: 10 feet
- Thickness: 1/4 inch
- Material: Mild steel
- Bend angle: 90 degrees
- Die opening: 1 inch (you will need to consult your press brake manual or tooling supplier to determine the correct die opening for your specific application)
- Get the tonnage required: The press brake tonnage calculator will calculate the tonnage required to make the bend accurately. In this example, let’s say the calculator tells you that you need 50 tons of force to make the bend.
- Choose the right press brake: Make sure you have a press brake that can deliver the required tonnage to make the bend. If your press brake does not have enough tonnage, you will not be able to make the bend accurately, and you could damage the equipment or the material.
Using a press brake tonnage calculator is essential for achieving the perfect bend in your sheet metal fabrication projects. By following the steps above, you can determine the required tonnage and select the appropriate press brake for the job. Remember to always ensure that the press brake’s capacity is greater than the calculated tonnage to avoid material damage and achieve the desired outcome.
