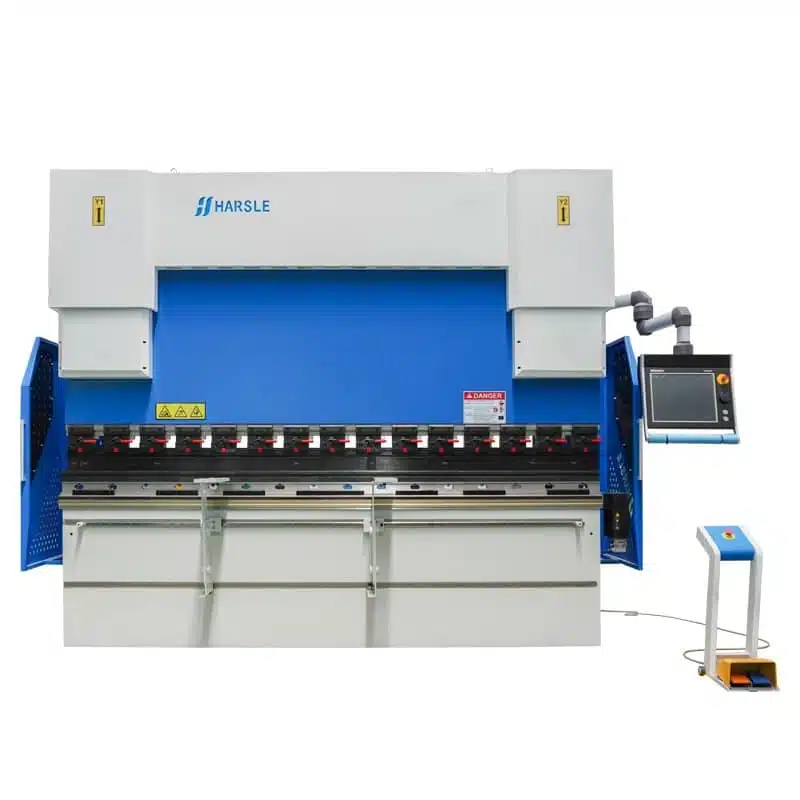

CNC Press Brake 63 Ton Bending Machine with DA69T

CNC Press Brake 63 Ton with DA69T controller. It is with high precision and high performance. The machine can be with a 6+1 axis or 8+1 axis (if you need more, please tell me )

The CNC hydraulic press bending machine has a CNC crowning system, it can make the compensation for the machine, let the bending sheet flatten. The machine back gauge, has the servo motor, letting the machine work at a fast speed. CNC Press Brake 63 Ton

DA69T controller with 3D capable graphical control to simulate bending sequences and collision points. It increases working speeds, stroke, and daylight.

 Machine Safety Introduction

1 The machine two sides have the safety-fence

2 The machine back side has the door with the electrical safety switch

3 The machine has laser protection, which can protect the worker

4 The machine meets the CE standard CNC Press Brake 63 Ton

CNC Press Brake 63 Ton Machine Feature

1 Fashionable design, high rigidity, high speed electro-hydraulic synchronous CNC sheet metal bending machine.

2 The electro-hydraulic full servo system coupled with the precise positioning of the grating ruler to realize full closed-loop control.

3 The hydraulic or mechanical deflection compensation of the worktable ensures the machining accuracy of the workpiece.

4 The back gauge is driven by a servo motor, driven by ball screws, and guided by linear guide rails to ensure positioning accuracy.

Machine DA69T controller

3D and 2D graphical touch screen programming mode
3D visualization in simulation and production
Crowning system control CNC Press Brake 63 Ton
17″ high-resolution color TFT
Date backup/ restore via USB
Bending tool/material/product library
Sensor bending & correction interface
Profile-T3D offline software

CNC hydraulic press bending machine CNC Axis Explanation

Y1                    Left cylinder electro-hydraulic synchronous closed-loop control axis
Y2                    Right cylinder electro-hydraulic synchronous closed-loop control axis
X (X1, X2)        Back gauge moving axis (back and front)
R(R1, R2)          Back gauge moving axis (up and down)
Z1, Z2               Two stop fingers moving axis (left and right)
V                      CNC crowning axis CNC Press Brake 63 Ton
