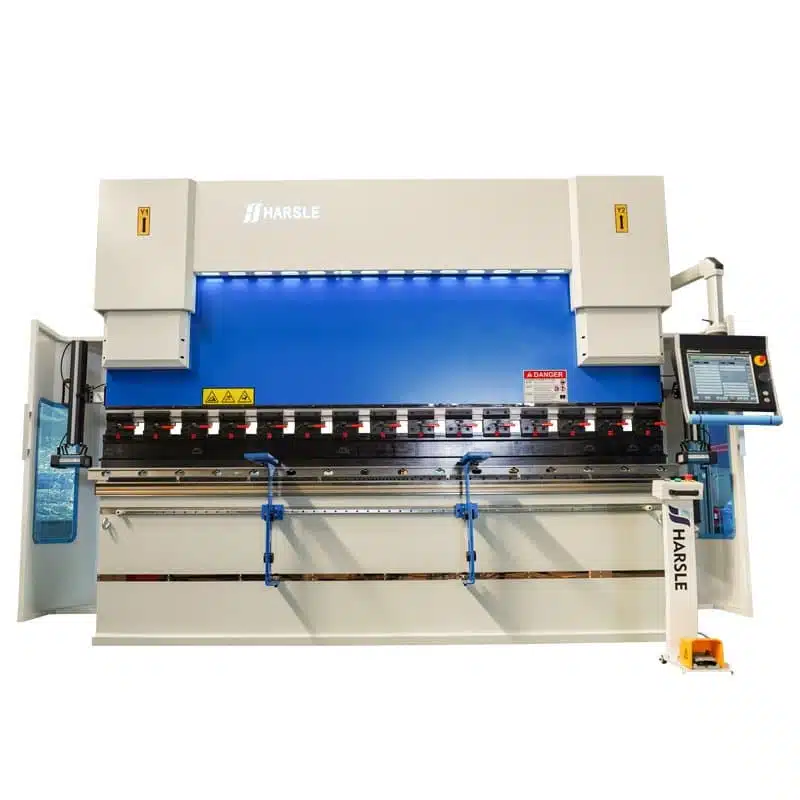

80T CNC Bending Machine DA69T

80T CNC Bending Machine with DA-69T. It is with high precision and high performance. The machine can be with a 6+1 axis or 8+1 axis (if you need more, please tell me )

CNC p80T CNC Bending Machine has the CNC crowning system, it can make the compensation for the machine, let the bending sheet more flattening.

The machine back gauge, has a servo motor, letting the machine work at a fast speed.

DA69T controller with 3D capable graphical control to simulate bending sequences and collision points, increase working speeds, stroke, daylight.

80T CNC Bending Machine Safety Introduction

1 The machine two sides has the safety-fence

2 The machine backside has the door with the electrical safety switch

3 The machine has laser protection, can protect the worker

4 The machine meets the CE standard

80T CNC Bending Machine with DA-69T Feature

1 Fashionable design, high rigidity, high speed electro-hydraulic synchronous CNC sheet metal bending machine.

2 The electro-hydraulic full servo system, coupled with the precise positioning of the grating ruler, realizes full closed-loop control.

3 The hydraulic or mechanical deflection compensation of the worktable ensures the machining accuracy of the workpiece.

4 The back gauge is driven by a servo motor, driven by ball screws, and guided by linear guide rails to ensure positioning accuracy.

Performance characteristics of 80T CNC Bending Machine

1. The 80T CNC Bending Machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.

2. The 80T CNC Bending Machine adopts a full-function back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the back gauge. Imported originals such as guide rails, screws, and bearings are used to ensure the accuracy of the back gauge.

3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing and can ensure the accuracy of the machine.

4. The machine body, slider, and other important components are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine tool.

5. The hydraulic bending machine adopts the integrated control system imported from Germany, which reduces the installation of pipelines, improves the working stability of the machine tool, and has a beautiful and concise appearance.

80T CNC Bending Machine Machine DA69T controller

3D and 2D graphical touch screen programming mode
3D visualization in simulation and production
Crowning system control
17″ high-resolution color TFT
Date backup/ restore via USB
Bending tool/material/product library
Sensor bending & correction interface
Profile-T3D offline software

Machine CNC Axis Explanation

Y1                                     Left cylinder electro-hydraulic synchronous closed-loop control axis
Y2                                    Right cylinder electro-hydraulic synchronous closed-loop control axis
X (X1, X2)                     Back gauge moving axis (back and front)
R(R1, R2)                       Back gauge moving axis (up and down)
Z1, Z2                              Two stop fingers moving axis (left and right)
V                                     CNC crowning axis
