100T Hydraulic Press Brake is a machine used in metalworking and fabrication that is designed to bend and shape metal sheets into various forms. The “100T” refers to the press brake’s maximum bending force, which is 100 tons.
The machine uses hydraulic power to apply the force needed to bend the metal, and it features a bed and ram that hold and manipulate the sheet metal. The bed is a flat surface where the metal is placed, and the ram is a moveable component that pushes the metal into the desired shape.
The hydraulic press brake is capable of bending a wide range of metals, including steel, aluminum, and copper. It is often used in industrial applications such as manufacturing, construction, and metal fabrication. 100t hydraulic press brake
Operators can use a variety of tools and dies to create different shapes and angles with the press brake, and it offers precision and accuracy in metalworking. The machine is designed with safety features, such as guards and emergency stops, to prevent accidents and ensure operator safety.
In summary, a 100T Hydraulic Press Brake is a powerful metalworking machine that uses hydraulic force to bend and shape metal sheets into various forms. It is a versatile tool used in various industrial applications and offers precision and accuracy in metal fabrication.

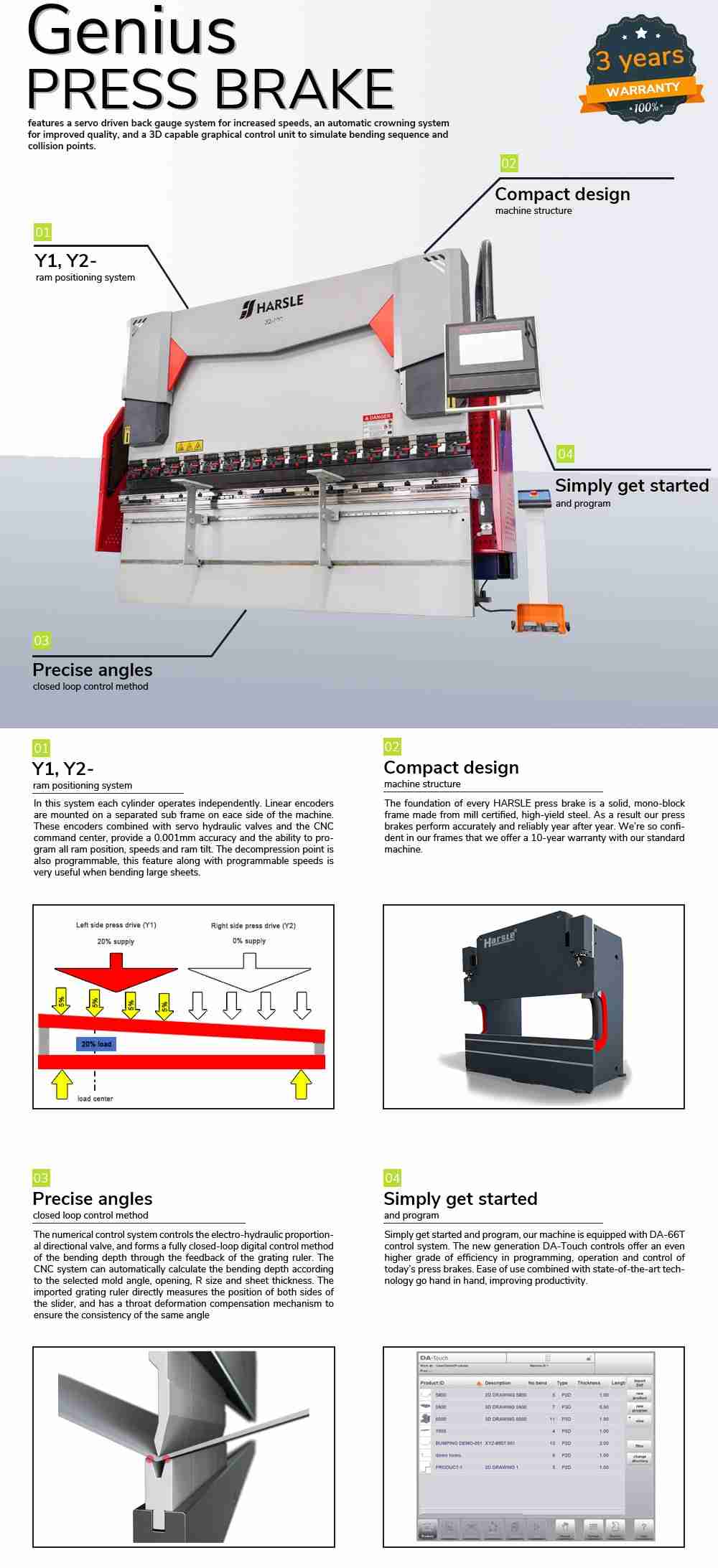

Features of 100T/3200 S640 100T Hydraulic Press Brake
1. Bending angle calculation and back gauge position calculation can be achieved by inputting metal sheet material information, sheet size, and punch and die size.

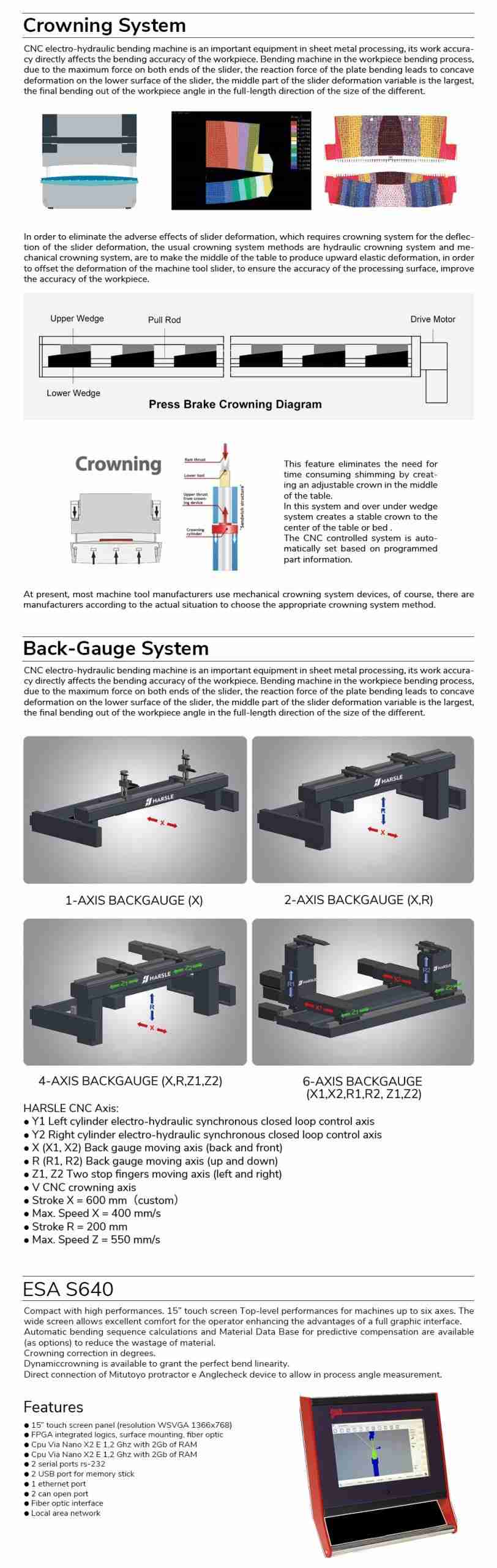

2. Crowning system can work with a CNC controller automatically to achieve higher bending accuracy and linearity. Hydraulic crowning and motorized crowing systems are optional.
3. CNC crowning ensures a constant bend angle across the full length of the machine. This is achieved by pre-loading the machine, to offset any possible deflection under load or compensate for any tool wear, so that under load contacting surfaces are parallel to each other.
Performance characteristics of hydraulic servo CNC press brake machine
1. The s640 100T Hydraulic Press Brake adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.
2. The CNC bending machine adopts a full-function back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the back gauge. Imported originals such as guide rails, screws, and bearings are used to ensure the accuracy of the back gauge.
3. The body of the 100T Hydraulic Press Brake adopts an integral welding structure, which is convenient for transportation and processing and can ensure the accuracy of the machine.
4. The machine body, slider, and other important components are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine tool.
5. The 100T Hydraulic Press Brake adopts the integrated control system imported from Germany, which reduces the installation of pipelines, improves the working stability of the machine tool, and has a beautiful and concise appearance.
