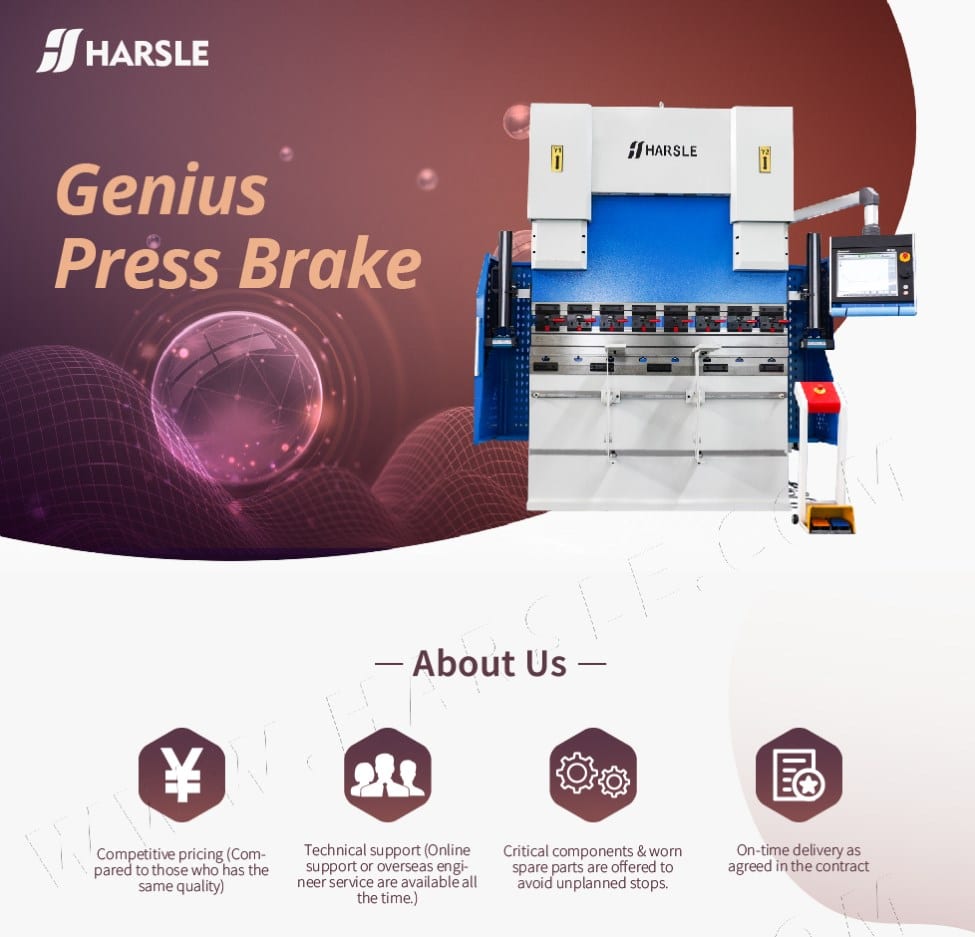

8 Axis 63Ton Press Brake1500mm with DA-66T

(1 customer review)

Weight 950 kg
Dimensions 3200 × 2000 × 2500 mm
Capacity

63T

Bending Length

1500mm

Backgauge Axis

X1+X2+R1+R2+Z1+Z2

Controller

DA-66T

Brand

HARSLE

Price Term

EXW

Lead Time

30 Days

Payment Method

LC

,

T/T

Warranty

Three Years

10 in stock

131 People watching this product now!
Description

8 Axis 63Ton Press Brake with the crowning system for improved quality, a servo-driven back gauge system for increased speed.

Also has increased working speed, stroke, daylight, and pressing capacities of the machine.4

The future – as a result of rising energy costs and increasingly cost-efficient speed-controlled drives offered on the market,

variable-speed solutions are in advance. Press Brake

This series is fully by European standards, high precision, high security.
8 Axis 63Ton Press Brake

Features of 8 Axis 63Ton Press Brake

1. Bending angle calculation and back gauge position calculation can be achieved by inputting metal sheet material information, sheet size, and punch and die size.

2. Crowning system can work with a CNC controller automatically to achieve higher bending accuracy and linearity.

Hydraulic crowning and motorized crowing systems are optional.

3. CNC crowning ensures a constant bend angle across the full length of the machine. This is achieved by pre-loading the machine,

to offset any possible deflection under load or compensate for any tool wear, so that under load contacting surfaces are parallel to each other.

PRESS BRAKE

Performance characteristics of 8 Axis 63Ton Press Brake

1. The 8 Axis 63Ton Press Brake adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece.

The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.

2. The 8 Axis 63Ton Press Brake adopts a full-function back gauge mechanism, which can choose to control multiple back gauge shafts.

Functional parts in the back gauge. Imported originals such as guide rails, screws, and bearings are used to ensure the accuracy of the back gauge.

3. The body of the Hydraulic Bender Machine adopts an integral welding structure, which is convenient for transportation and processing and can ensure the accuracy of the machine.

4. The machine body, slider, and other important components are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine tool.

5. The hydraulic bending machine adopts the integrated control system imported from Germany, which reduces the installation of pipelines,

improves the working stability of the machine tool, and has a beautiful and concise appearance.

8 Axis 63Ton Press Brake controller DA66T

2D graphical touch screen programming mode
3D visualization in simulation and production
Crowning system control
17″ high-resolution color TFT
Date backup/ restore via USB
Bending tool/material/product library
Full Windows application suite
Open system architecture

bending machine

Machine CNC Axis Explanation

Y1                                      Left cylinder electro-hydraulic synchronous closed-loop control axis
Y2                                     Right cylinder electro-hydraulic synchronous closed-loop control axis
X (X1, X2)                     Back gauge moving axis (back and front)
R(R1, R2)                       Back gauge moving axis (up and down)
Z1, Z2                               Two stop fingers moving axis (left and right)
V                                      CNC crowning axis 8 Axis 63Ton Press Brake
