Press Brake 100 ton 3200 Hydraulic with S640 For Sheet Metal

(13 customer reviews)

Weight 950 kg
Dimensions 3200 × 2000 × 2500 mm
Capacity

100T

Bending Length

3200mm

Backgauge Axis

X+R

Controller

S640

Brand

HARSLE

Price Term

EXW

Lead Time

30 Days

Payment Method

LC

,

T/T

Warranty

Three Years

5 in stock

52 People watching this product now!
Description

Press brake 100 ton is a machine used in metalworking to bend and shape sheet metal. The term “100 ton” refers to the machine’s maximum bending force, which in this case is 100 tons or 200,000 pounds.

A press brake typically consists of a hydraulic system, a bed or table, a ram, and a die. The sheet metal is placed on the bed and the ram, which is attached to the hydraulic system, is lowered to apply pressure to the metal and bend it to the desired angle.

The die, which is located on the bed, provides the necessary shape to the metal as it is bent.

The  press brake 100 ton is a relatively large and powerful machine, capable of bending thick sheets of metal with high precision. It is commonly used in industrial settings such as metal fabrication shops, where large volumes of sheet metal need to be bent and shaped.

With a 100-ton capacity, it can handle a wide range of metal thicknesses and sizes, making it a versatile tool for many different applications.



Features of 100T/3200 S640 press brake 100 ton

1. Bending angle calculation and back gauge position calculation can be achieved by inputting metal sheet material information, sheet size, and punch and die size. Press Brake 100 ton

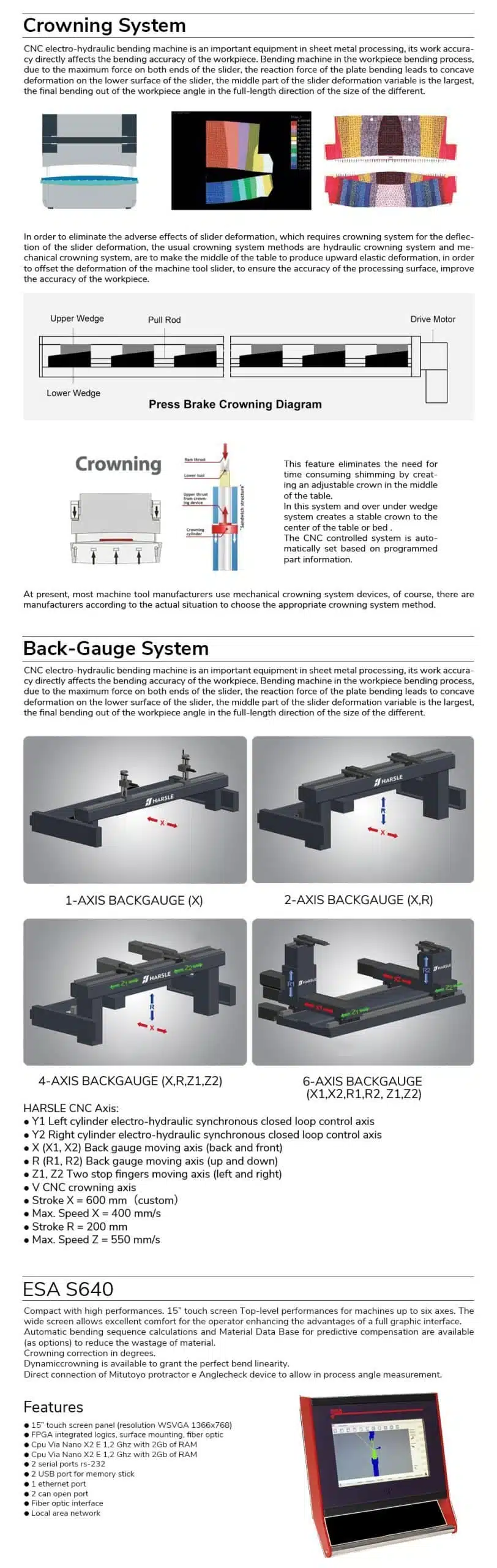

2. Crowning system can work with a CNC controller automatically to achieve higher bending accuracy and linearity. Hydraulic crowning and motorized crowing systems are optional.

3. CNC crowning ensures a constant bend angle across the full length of the machine. This is achieved by preloading the machine, to offset any possible deflection under load or compensate for any tool wear, so that under load contacting surfaces are parallel to each other.

Press Brake 100 ton

press brake



Performance characteristics of hydraulic servo CNC press brake machine

1. The s640 press brake 100 ton adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.

2. The CNC bending machine adopts a full-function back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the back gauge. Imported originals such as guide rails, screws, and bearings are used to ensure the accuracy of the back gauge.

3. The body of the press brake 100 ton adopts an integral welding structure, which is convenient for transportation and processing and can ensure the accuracy of the machine.

4. The machine body, slider, and other important components are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine tool.

5. The press brake 100 ton adopts the integrated control system imported from Germany, which reduces the installation of pipelines, improves the working stability of the machine tool, and has a beautiful and concise appearance.
