9 Axis 100T Press Brake With DA69T
Weight | 950 kg |
---|---|
Dimensions | 3200 × 2000 × 2500 mm |
Capacity |
100T |
Bending Length |
4000mm |
Backgauge Axis |
X1+X2+R1+R2+Z1+Z2 |
Controller |
DA-69T |
Brand |
HARSLE |
Price Term |
EXW |
Lead Time |
30 Days |
Payment Method |
LC ,T/T |
Warranty |
Three Years |
10 in stock

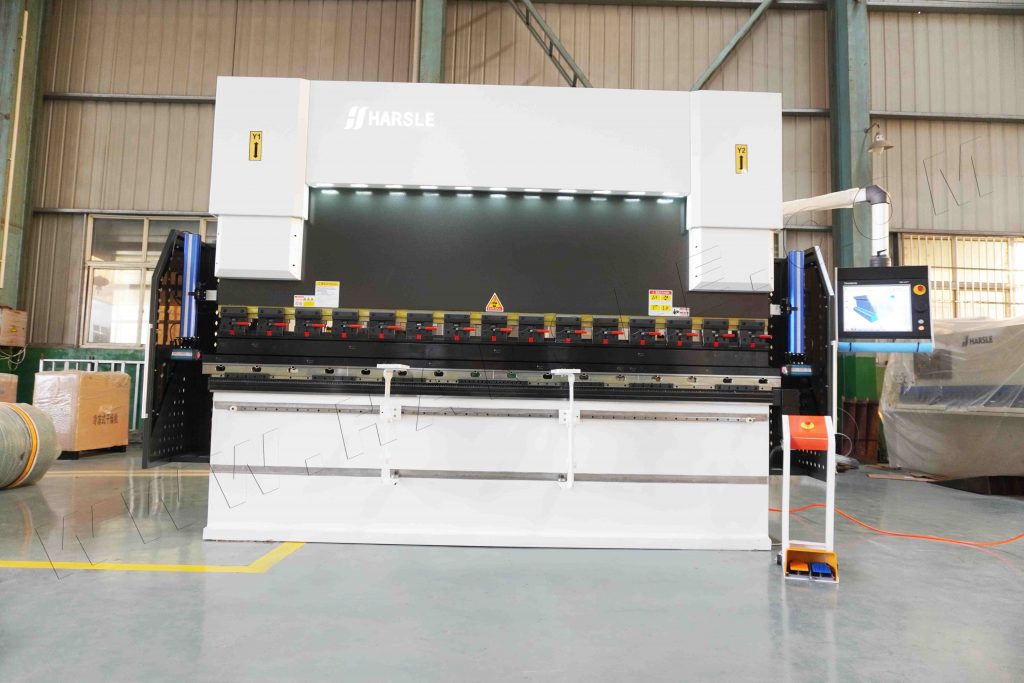

9 Axis 100T Press Brake. It is with high precision and high performance.
The 9 Axis 100T Press Brake can be with a 6+1 axis or 8+1 axis (if you need more, please tell me )
The machine has the CNC crowning system, it can make the compensation for the machine, let the bending sheet more flattening.
The machine back gauge has a servo motor, which lets the machine work at a fast speed. 9 Axis 100T Press Brake
DA69T controller with 3D capable graphical control to simulate bending sequences and collision points, It increases working speeds, stroke, daylight.
9 Axis 100T Press Brake Safety Introduction
1 The machine two sides has the safety-fence
2 The machine backside has the door with the electrical safety switch
3 The machine has laser protection, can protect the worker
4 The machine meets the CE standard
9 Axis 100T Press Brake with DA-69T Feature
1 Fashionable design, high rigidity, high speed electro-hydraulic synchronous 9 Axis 100T Press Brake.
2 The electro-hydraulic full servo system, coupled with the precise positioning of the grating ruler, realizes full closed-loop control.
3 The hydraulic or mechanical deflection compensation of the worktable ensures the machining accuracy of the workpiece.
4 The back gauge is driven by a servo motor, driven by ball screws, and guided by linear guide rails to ensure positioning accuracy.
Performance characteristics of 9 Axis 100T Press Brake
1. The 9 Axis 100T Press Brake adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.
2. The 9 Axis 100T Press Brake adopts a full-function back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the back gauge. Imported originals such as guide rails, screws, and bearings are used to ensure the accuracy of the back gauge.
3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing and can ensure the accuracy of the machine.
4. The machine body, slider, and other important components are analyzed using ANSYS finite element analysis software to ensure the reliability of the machine tool.
5. The hydraulic bending machine adopts the integrated control system imported from Germany, which reduces the installation of pipelines, improves the working stability of the machine tool, and has a beautiful and concise appearance.
Machine DA69T controller
3D and 2D graphical touch screen programming mode
3D visualization in simulation and production
Crowning system control
17″ high-resolution color TFT
Date backup/ restore via USB
Bending tool/material/product library
Sensor bending & correction interface
Profile-T3D offline software
Machine CNC Axis Explanation
Y1 Left cylinder electro-hydraulic synchronous closed-loop control axis
Y2 Right cylinder electro-hydraulic synchronous closed-loop control axis
X (X1, X2) Back gauge moving axis (back and front)
R(R1, R2) Back gauge moving axis (up and down)
Z1, Z2 Two stop fingers moving axis (left and right)
V CNC crowning axis
